09032968892 | Harting

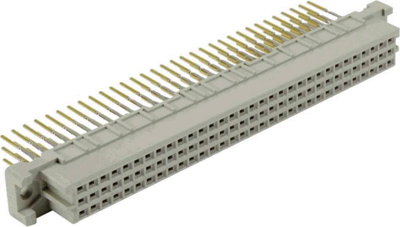

Female connector, type C, 96 pole, a-b-c, pitch 2.54 mm, press-in connection, straight, gold-plated, 09032968892
Unit Price (€ / pc.)
29.8571 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Total Price:
29.86 € *
Price list
Quantity
Price per unit*
1 pcs.
29.8571 €
10 pcs.
27.4652 €
25 pcs.
24.9900 €
50 pcs.
22.7409 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female connector, 09032968892, Harting
Female connector, Press-in termination, Rated current: 2 A, Contacts: 96, Straight, Copper alloy, Au over Ni Mating side, Ni Termination side,Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey).
Technical specifications
| Anforderungsstufe | 1 | |
| Anschluss | Einpressanschluss | |
| Bauform | C | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | vergoldet | |
| Kontaktreihenbelegung | a-b-c | |
| Nennstrom | 2 A | |
| Orientierung | gerade | |
| Polzahl | 96-polig | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
