09051486931 | Harting

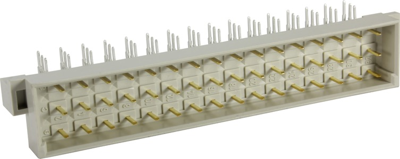

Male connector, type E, 48 pole, a-c-e, pitch 5.08 mm, solder pin, angled, gold-plated, 09051486931
Unit Price (€ / pc.)
6.3427 € *
Available: 157 pcs.
Leadtime: 1 Week **
Total Price:
6.34 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3427 €
10 pcs.
5.5930 €
100 pcs.
4.9028 €
250 pcs.
4.7124 €
1000 pcs.
4.4149 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 09051486931, Harting
Male connector, Wave soldering termination, Rated current: 6 A, Contacts: 48, Angled, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Hole coding, Coding with loss of contacts, Side coding, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Performance level | 2 | |
| Connection | solder pin | |
| Design | E | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Contact row assignment | a-c-e | |
| Rated current | 6 A | |
| Orientation | angled | |
| Pin number | 48 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
