09058486921 | Harting

Male connector, type E, 48 pole, a-c-e, pitch 5.08 mm, solder pin, angled, 09058486921

Order No.: 44F685
EAN: 4099891017552
MPN:
09058486921
09 05 848 6921
Series: DIN 41612
Harting

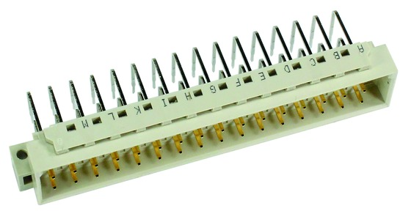

09058486921 Harting DIN PCB Connectors
Image may differ
Unit Price (€ / pc.)
10.1507 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
10.15 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
10.1507 €

Male connector, 09058486921, Harting

Male connector, Wave soldering termination, Rated current: ‌6 A, Contacts: 48, Angled, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Hole coding, Coding with loss of contacts, Side coding, PCB fixing: With fixing flange, With snap-in clip, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)

Technical specifications
Anforderungsstufe 2
Anschluss Lötstift
Bauform E
Kontaktart Stift
Kontaktreihenbelegung a-c-e
Nennstrom 6 A
Orientierung abgewinkelt
Polzahl 48-polig
Rastermaß 5.08 mm
Logistics
Ursprungsland CH
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
