09060152912 | Harting
Male connector, type H15, 15 pole, z-d, pitch 5.08 mm, faston plug, straight, silver-plated, 09060152912
Unit Price (€ / pc.)
12.6140 € *
Available: 19 pcs.
Leadtime: 1 Week **
Total Price:
12.61 € *
Price list
Quantity
Price per unit*
1 pcs.
12.6140 €
10 pcs.
11.6025 €
50 pcs.
10.5672 €
100 pcs.
9.5081 €
*incl. VAT plus shipping costs
**Subject to prior sale

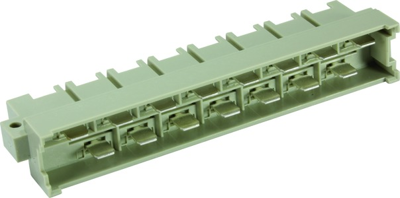

Male connector, 09060152912, Harting
Male connector, Faston termination, Rated current: 15 A, Contacts: 15, Straight, Copper alloy, Silver plated Mating side, Performance level: 1, acc. to IEC 60603-2, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Performance level | 1 | |
| Connection | faston plug | |
| Design | H15 | |
| Contact type | pin | |
| contact surface | silver-plated | |
| Contact row assignment | z-d | |
| Rated current | 15 A | |
| Orientation | straight | |
| Pin number | 15 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
