09061152932222 | Harting

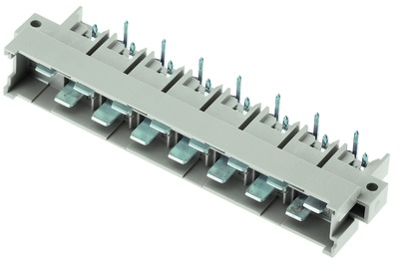

Male connector, type H15, 15 pole, z-d, pitch 5.08 mm, solder pin, angled, silver-plated, 09061152932222

Order No.: 45F0566
EAN: 4099891019877
MPN:
09061152932222
09 06 115 2932 222
Series: DIN 41612
Harting
09061152932222 Harting DIN PCB Connectors
Image may differ
Unit Price (€ / pc.)
5.4978 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
5.50 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.4978 €

Male connector, 09061152932222, Harting

Male connector, Wave soldering termination, Rated current: ‌15 A, Contacts: 15, Angled, Copper alloy, Silver plated Termination side, Sn over Ni Termination side, Performance level: 1, acc. to IEC 60603-2, Coding: Shroud coding, D20 coding, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7035 (light grey)

Technical specifications
Performance level 1
Connection solder pin
Design H15
Contact type pin
contact surface silver-plated
Contact row assignment z-d
Rated current 15 A
Orientation angled
Pin number 15 pole
Grid 5.08 mm
Logistics
Country of origin RO
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
