09061316924 | Harting

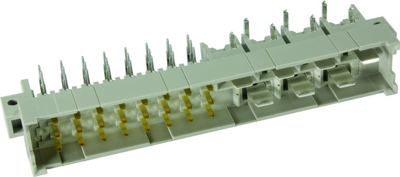

Male connector, type M/H, 31 pole, z-b-d, pitch 5.08 mm, solder pin, angled, tin-plated, 09061316924
Unit Price (€ / pc.)
9.8413 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Male connector, 09061316924, Harting
Male connector, Wave soldering termination, Rated current: 6, 15, Contacts: 31, Angled, Copper alloy, Noble metal Mating side, signal contacts, Silver plated Mating side, power contacts, Sn over Ni Termination side, signal contacts, Sn over Ni Termination side, power contacts, Performance level: 2, acc. to IEC 60603-2, Coding: Hole coding, Shroud coding, Coding with loss of contacts, D20 coding, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Design | M/H | |
| Contact type | Stift | |
| Pin number | 31-polig | |
| Contact row assignment | z-b-d | |
| Grid | 5.08 mm | |
| Connection | Lötstift | |
| Orientation | abgewinkelt | |
| contact surface | verzinnt | |
| Rated current | 6 A | |
| Performance level | 2 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
