09062152812 | Harting

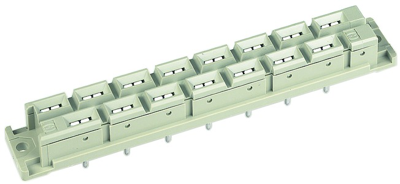

Female connector, type H15, 15 pole, z-d, pitch 10.16 mm, solder pin, straight, silver-plated, 09062152812
Unit Price (€ / pc.)
8.0325 € *
Available: 0 pcs.
Leadtime: 1 Week **
Female connector, 09062152812, Harting
Female connector, Wave soldering termination, Rated current: 15 A, Contacts: 15, Straight, Copper alloy, Silver plated Mating side, Sn over Ni Termination side, Performance level: 1, acc. to IEC 60603-2, Coding: Shroud coding, D20 coding, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Performance level | 1 | |
| Connection | solder pin | |
| Design | H15 | |
| Contact type | socket | |
| contact surface | silver-plated | |
| Contact row assignment | z-d | |
| Rated current | 15 A | |
| Orientation | straight | |
| Pin number | 15 pole | |
| Grid | 10.16 mm |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
