09062152831 | Harting

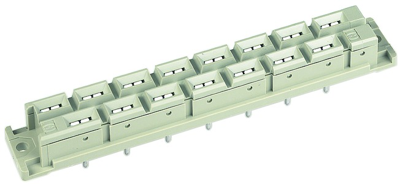

Female connector, type H15, 15 pole, z-d, pitch 10.16 mm, solder pin, straight, silver-plated, 09062152831

Order No.: 44F884
EAN: 4099891019013
MPN:
09062152831
09 06 215 2831
Series: DIN 41612
09062152831 Harting DIN PCB Connectors
Image may differ
Unit Price (€ / pc.)
13.2328 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
13.23 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
13.2328 €

Female connector, 09062152831, Harting

Female connector, Wave soldering termination, Rated current: ‌15 A, Contacts: 15, Straight, Copper alloy, Silver plated Mating side, Sn over Ni Termination side, Performance level: 1, acc. to IEC 60603-2, Coding: Shroud coding, D20 coding, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)

Technical specifications
Performance level 1
Connection Lötstift
Design H15
Contact type Buchse
contact surface versilbert
Contact row assignment z-d
Rated current 15 A
Orientation gerade
Pin number 15-polig
Grid 10.16 mm
Logistics
Country of origin RO
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
