09062162411 | Harting

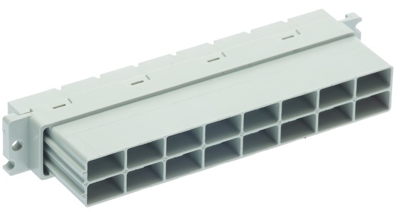

Female connector, type H16, 16 pole, z-d, pitch 10.16 mm, faston plug, straight, silver-plated, 09062162411

Order No.: 44F893
EAN: 4099891019082
MPN:
09062162411
09 06 216 2411
Series: DIN 41612
Harting
09062162411 Harting DIN PCB Connectors
Image may differ
Unit Price (€ / pc.)
14.6013 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
14.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
14.6013 €

Female connector, 09062162411, Harting

Female connector, Faston termination, Rated current: ‌15 A, Contacts: 16, Straight, Copper alloy, Silver plated Mating side, Performance level: 1, acc. to IEC 60603-2, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)

Technical specifications
Performance level 1
Connection faston plug
Design H16
Contact type socket
contact surface silver-plated
Contact row assignment z-d
Rated current 15 A
Orientation straight
Pin number 16 pole
Grid 10.16 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
