09062312822 | Harting

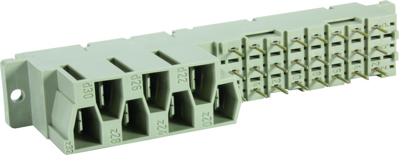

Female connector, type M/H, 24 pole, z-b-d, pitch 5.08 mm, solder pin, straight, silver-plated, 09062312822
Unit Price (€ / pc.)
12.7568 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Female connector, 09062312822, Harting
Female connector, Wave soldering termination, Rated current: 6, 15, Contacts: 31, Straight, Copper alloy, Noble metal Mating side, signal contacts, Silver plated Mating side, power contacts, Sn over Ni Termination side, signal contacts, Sn over Ni Termination side, power contacts, Performance level: 1, acc. to IEC 60603-2, Coding: Hole coding, Shroud coding, Coding with loss of contacts, D20 coding, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Performance level | 1 | |
| Connection | solder pin | |
| Design | M/H | |
| Contact type | socket | |
| contact surface | silver-plated | |
| Contact row assignment | z-b-d | |
| Rated current | 6 A | |
| Orientation | straight | |
| Pin number | 24 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
