09062326843 | Harting

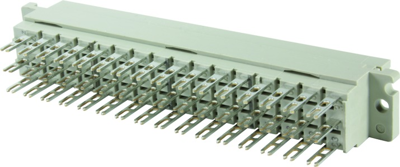

Female connector, type F, 32 pole, z-d, pitch 10.16 mm, solder pin, straight, gold-plated, 09062326843
Unit Price (€ / pc.)
14.9583 € *
Available: 39 pcs.
Leadtime: 8 Weeks **
Total Price:
14.96 € *
Price list
Quantity
Price per unit*
1 pcs.
14.9583 €
10 pcs.
13.1495 €
50 pcs.
12.2689 €
150 pcs.
11.7096 €
500 pcs.
11.1265 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female connector, 09062326843, Harting
Female connector, Solder lug termination, Rated current: 6 A, Contacts: 32, Straight, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Hole coding, Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Anforderungsstufe | 2 | |
| Anschluss | Lötstift | |
| Bauform | F | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | vergoldet | |
| Kontaktreihenbelegung | z-d | |
| Nennstrom | 6 A | |
| Orientierung | gerade | |
| Polzahl | 32-polig | |
| Rastermaß | 10.16 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
