09062326858 | Harting

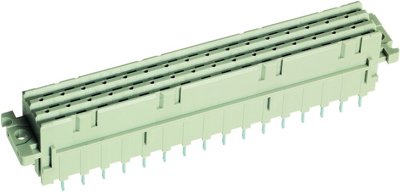

Female connector, type F, 32 pole, z-b-d, pitch 5.08 mm, solder pin, straight, gold-plated, 09062326858
Unit Price (€ / pc.)
8.6394 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Female connector, 09062326858, Harting
Female connector, Wave soldering termination, Rated current: 6 A, Contacts: 32, Straight, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Hole coding, Coding with loss of contacts, Shroud coding, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Anforderungsstufe | 2 | |
| Anschluss | Lötstift | |
| Bauform | F | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | vergoldet | |
| Kontaktreihenbelegung | z-b-d | |
| Nennstrom | 6 A | |
| Orientierung | gerade | |
| Polzahl | 32-polig | |
| Rastermaß | 5.08 mm |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
