09062482834 | Harting

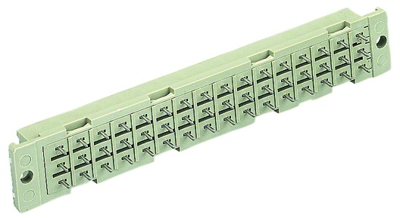

Female connector, type F, 48 pole, z-b-d, pitch 5.08 mm, solder pin, straight, gold-plated, 09062482834
Unit Price (€ / pc.)
10.6743 € *
Available: 8 pcs.
Leadtime: 7 Weeks **
Total Price:
10.67 € *
Price list
Quantity
Price per unit*
1 pcs.
10.6743 €
10 pcs.
9.8175 €
50 pcs.
8.9369 €
100 pcs.
8.0444 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female connector, 09062482834, Harting
Female connector, Wave soldering termination, Rated current: 6 A, Contacts: 48, Straight, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 1, acc. to IEC 60603-2, Coding: Hole coding, Coding with loss of contacts, Shroud coding, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Anforderungsstufe | 1 | |
| Anschluss | Lötstift | |
| Bauform | F | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | vergoldet | |
| Kontaktreihenbelegung | z-b-d | |
| Nennstrom | 6 A | |
| Orientierung | gerade | |
| Polzahl | 48-polig | |
| Rastermaß | 5.08 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
