09062486836 | Harting

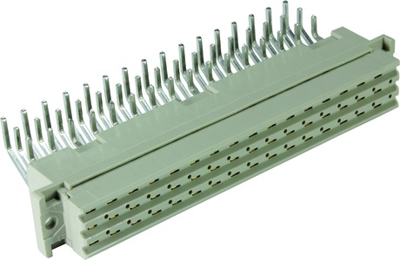

Female connector, type F, 48 pole, z-b-d, pitch 5.08 mm, solder pin, angled, gold-plated, 09062486836
Unit Price (€ / pc.)
34.8670 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
34.87 € *
Price list
Quantity
Price per unit*
1 pcs.
34.8670 €
10 pcs.
32.4275 €
25 pcs.
29.8214 €
50 pcs.
27.1558 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female connector, 09062486836, Harting
Female connector, Wave soldering termination, Rated current: 6 A, Contacts: 48, Angled, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Hole coding, Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Performance level | 2 | |
| Connection | Lötstift | |
| Design | F | |
| Contact type | Buchse | |
| contact surface | vergoldet | |
| Contact row assignment | z-b-d | |
| Rated current | 6 A | |
| Orientation | abgewinkelt | |
| Pin number | 48-polig | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
