09281482902 | Harting

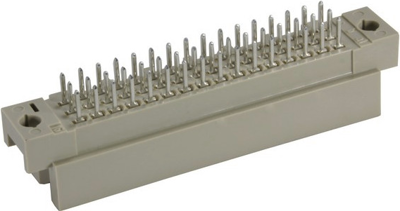

Male connector, type 2R, 48 pole, a-b-c, pitch 2.54 mm, solder connection, straight, gold-plated, 09281482902

Order No.: 42P6662
EAN: 5713140042827
MPN:
09281482902
Series: DIN 41612
09281482902 Harting DIN PCB Connectors
Image may differ
Unit Price (€ / pc.)
7.3780 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
7.38 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3780 €
10 pcs.
6.7235 €
50 pcs.
6.0452 €
100 pcs.
5.3193 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male connector, 09281482902, Harting

Male connector, Wave soldering termination, Rated current: ‌2 A, Contacts: 48, Straight, Copper alloy, Au over NiP over Ni Mating side, Sn over Ni Termination side, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey).

Technical specifications
Design 2R
Contact type Stift
Pin number 48-polig
Contact row assignment a-b-c
Grid 2.54 mm
Connection Lötanschluss
Orientation gerade
contact surface vergoldet
Rated current 2 A
Performance level 1
Logistics
Country of origin RO
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
