09721646909 | Harting

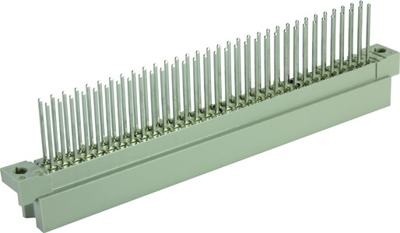

Male connector, type Q, 64 pole, a-b, pitch 2.54 mm, wire-wrap, straight, gold-plated, 09721646909

Order No.: 44F8190
EAN: 4099891017637
MPN:
09721646909
09 72 164 6909
Series: DIN 41612
Harting
09721646909 Harting DIN PCB Connectors
Image may differ
Unit Price (€ / pc.)
16.9218 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
16.92 € *
Price list
Quantity
Price per unit*
200 pcs.
16.9218 €
300 pcs.
16.4220 €
500 pcs.
15.8984 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male connector, 09721646909, Harting

Male connector, Wrap termination, Rated current: ‌2 A, Contacts: 64, Straight, Copper alloy, Noble metal over Ni Mating side, Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)

Technical specifications
Performance level 2
Connection wire-wrap
Design Q
Contact type pin
contact surface gold-plated
Contact row assignment a-b
Rated current 2 A
Orientation straight
Pin number 64 pole
Grid 2.54 mm
Logistics
Country of origin CH
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
