09731967974 | Harting

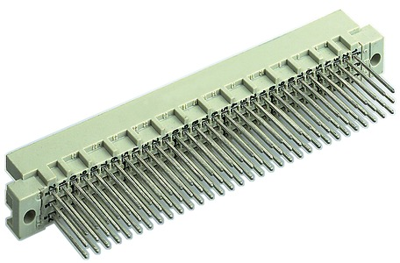

Male connector, type R, 96 pole, a-b-c, pitch 2.54 mm, press-in connection, straight, gold-plated, 09731967974

Order No.: 44F8257
EAN: 4099891018191
MPN:
09731967974
09 73 196 7974
Series: DIN 41612
Harting
09731967974 Harting DIN PCB Connectors
Image may differ
Unit Price (€ / pc.)
7.4851 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
7.49 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
7.4851 €

Male connector, 09731967974, Harting

Male connector, Press-in termination, Wrap termination, Rated current: ‌2 A, Contacts: 96, Straight, Copper alloy, Noble metal over Ni Mating side, Ni Termination side, Performance level: 3, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)

Technical specifications
Performance level 3
Connection press-in connection
Design R
Contact type pin
contact surface gold-plated
Contact row assignment a-b-c
Rated current 2 A
Orientation straight
Pin number 96 pole
Grid 2.54 mm
Logistics
Country of origin CH
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
