09791966907 | Harting

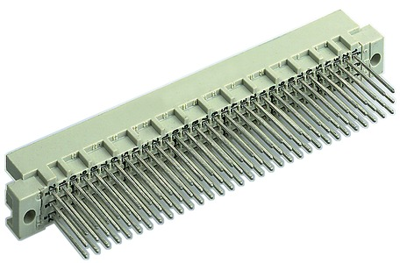

Male connector, type RL, 96 pole, a-b-c, pitch 2.54 mm, wire-wrap, straight, gold-plated, 09791966907

Order No.: 44F8315
EAN: 4099891018665
MPN:
09791966907
09 79 196 6907
Series: DIN 41612
Harting
09791966907 Harting DIN PCB Connectors
Image may differ
Unit Price (€ / pc.)
7.2352 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
7.24 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
7.2352 €

Male connector, 09791966907, Harting

Male connector, Wrap termination, Rated current: ‌2 A, Contacts: 96, Straight, Copper alloy, Noble metal over Ni Mating side, Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)

Technical specifications
Performance level 2
Connection wire-wrap
Design RL
Contact type pin
contact surface gold-plated
Contact row assignment a-b-c
Rated current 2 A
Orientation straight
Pin number 96 pole
Grid 2.54 mm
Logistics
Country of origin CH
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
