09352410421 | Harting

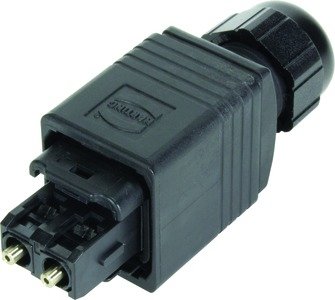

SCRJ plug, straight, 09352410421

Order No.: 44F3386
EAN: 4099889825237
MPN:
09352410421
09 35 241 0421
Series: Han PushPull
Harting
09352410421 Harting Fibre Optic Connectors
Image may differ
Unit Price (€ / pc.)
57.9292 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
57.93 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
57.9292 €

Connector set, PROFINET-Description: PROFINET O-Plug SCRJ, 1 mm POF, contacts: 2

Connector set, PROFINET-Description: PROFINET O-Plug SCRJ, 1 mm POF, contacts: 2.

The technical features of 09352410421 from Harting at glance

  • Protection class (IP, mounted) IP67 - IP65
  • Angle contact / conductor connection 180° (horizontal)
  • Housing material Plastic
  • Interlock available Yes
  • Contact design Connector set
  • Product type description Han PushPull SCRJ POF Plastic
  • max. Ambient temperature 70 °C
  • max. Operating temperature 70 °C
  • min. Ambient temperature - 40 °C
  • min. Operating temperature - 40 °C
  • Locking type Push Pull
  • Number of plug contacts 2
  • Flammability class of the insulating material (based on UL 94) V0
  • Description Han PushPull SCRJ POF Plastic
Technical specifications
Version SCRJ plug
Degree of protection (IP) IP65/IP67
Logistics
Country of origin DE
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
