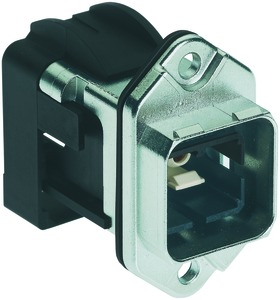

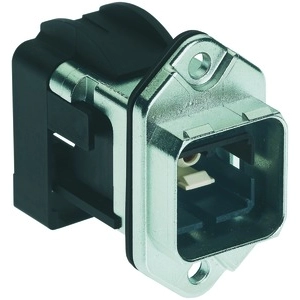

09352420313 | Harting
SCRJ socket, straight, 09352420313
Unit Price (€ / pc.)
60.9637 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Panel feed-through, AIDA compliant, contacts: 2
Panel feed-through, AIDA compliant, contacts: 2.
The technical features of 09352420313 from Harting at glance
- Description Han PushPull SCRJ Metal WDF
- Flammability class of the insulating material (based on UL 94) V0
- Number of plug contacts 2
- Locking type Push Pull
- min. Operating temperature - 40 °C
- min. Ambient temperature - 40 °C
- max. Operating temperature 70 °C
- max. Ambient temperature 70 °C
- Product type description Han PushPull SCRJ Metal WDF
- Contact design Panel feed-through - LWL
- Interlock available Yes
- Angle contact / conductor connection 180° (horizontal)
- Housing material Zinc die casting
- Protection class (IP, mounted) IP67 - IP65
Technical specifications
| Version | SCRJ socket | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
