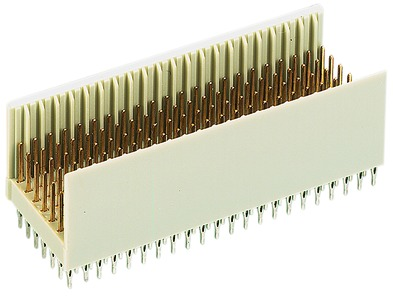

Male connector, 17051331201, HARTING

Male connector, thermoplastic molding material, glass fiber reinforced, beige, motherboard to daughtercard, press-fit connection, rated current: 1 A, contacts: 133, straight, copper alloy, Au over Pd/Ni over Ni, plug-in side, nickel-plated, connection side, requirement level: 1.

The technical characteristics of 17051331201 from Harting at glance

• Product type description har-bus HM Mel. Type B19, AFS 1, Tube
• Grid dimension of the contact 2 mm
• Grid dimension of the connections 2 mm
• Insulator material Thermoplast
• Contact coating material Plug-in side - palladium - nickel - connection side
• Packing type Tube
• Contact design masculine (male)
• min. Operating temperature -55 °C
• Angle printed circuit board/contact 0°/180° (horizontal)
• max. Operating temperature 125 °C
• Suitable for PCB thickness 1.4 mm
• Execution of the electrical connection Print connection
• Connection type PCB to PCB
• Number of rows of plug contacts 7
• Number of plug contacts 133
• Rated current 1 A
• Flammability class of the insulating material (based on UL 94) V0
• Description har-bus HM Mel. Type B19, AFS 1, Tube
