09140100303 | Harting

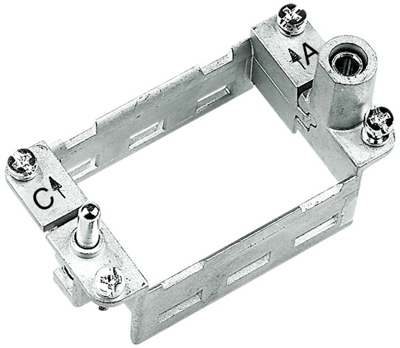

Name: Holding frame, size 10B, zinc die casting, 09140100303
Brand: Harting
SKU: 41F702
Price: 23.86 EUR
Availability: InStock

Holding frame, size 10B, zinc die casting, 09140100303

Order No.: 41F702

EAN: 4099889745320

MPN:

09140100303

09 14 010 0303

Series: Han B

Image may differ

Key Specification:

Version holding frame

Shell size 10B

Shell Material zinc die casting

Show 2 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

23.8595 € *

Available: 1 pcs.

Leadtime: 7 Weeks **

Total Price:

23.86 € *

Price list

Quantity

Price per unit*

1 pcs.

23.8595 €

10 pcs.

21.9555 €

25 pcs.

20.1943 €

50 pcs.

18.3855 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Hinged frame, 09140100303, HARTING

Hinged frame for 3 modules, size: 10 B.

Technical specifications

	Version	holding frame
	Shell size	10B
	Shell Material	zinc die casting

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

DID – Dimension drawing - DE DID – Dimension drawing

Logistics

Country of origin	DE
Customs tariff number	85389099

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No
Substance description	Lead
