09140160303 | Harting

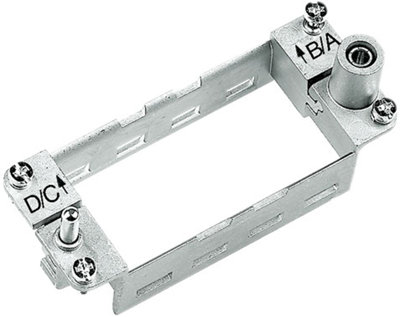

Name: Holding frame, size 16B, zinc die casting, 09140160303
Brand: Harting
SKU: 41F704
Price: 22.18 EUR
Availability: InStock

Holding frame, size 16B, zinc die casting, 09140160303

Order No.: 41F704

EAN: 4099889745337

MPN:

09140160303

09 14 016 0303

Series: Han B

Image may differ

Key Specification:

Version holding frame

Shell size 16B

Shell Material zinc die casting

Download Datasheet Technical specifications

Unit Price (€ / pc.)

22.1816 € *

Available: 4 pcs.

Leadtime: 7 Weeks **

Total Price:

22.18 € *

Price list

Quantity

Price per unit*

1 pcs.

22.1816 €

5 pcs.

20.8488 €

15 pcs.

20.0753 €

50 pcs.

19.1709 €

150 pcs.

18.3736 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Hinged frame, 09140160303, HARTING

Hinged frame for 4 modules, size: 16 B.

Technical specifications

	Version	holding frame
	Shell size	16B
	Shell Material	zinc die casting

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

DID – Dimension drawing - DE DID – Dimension drawing

Logistics

Country of origin	DE
Customs tariff number	85389099

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
