09200030220 | Harting

Name: Bulkhead housing, size 3A, PC, PG11, straight, longitudinal bow locking, IP44/IP65/IP67, 09200030220
Brand: Harting
SKU: 42F942
Price: 7.10 EUR
Availability: OutOfStock

Bulkhead housing, size 3A, PC, PG11, straight, longitudinal bow locking, IP44/IP65/IP67, 09200030220

Order No.: 42F942

EAN: 4099889746525

MPN:

09200030220

09 20 003 0220

Series: Han A

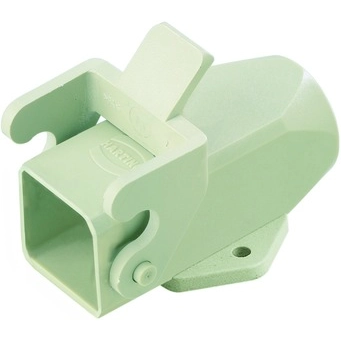

09200030220 Harting Housings for HDC Connectors Image 2

Image may differ

Key Specification:

Ausführung Anbaugehäuse

Gehäusegröße 3A

Gehäusematerial PC

Kabelausgang PG11, gerade

Verriegelung Längsbügelverriegelung

Ordering Information:

Lieferung ohne Standard- und Spezial-Kabelverschraubungen und Montagesätze für Flachleitungsausgänge, bitte separat bestellen

Show 6 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

7.1043 € *

Available: 0 pcs.

Leadtime: 14 Weeks **

Add to Cart

Total Price:

7.10 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Surface mounted housing, 09200030220, HARTING

Surface mounted housing with single locking lever and top entry., material: zinc die-cast.

Technical specifications

	Ausführung	Anbaugehäuse
	Gehäusegröße	3A
	Gehäusematerial	PC
	Kabelausgang	PG11, gerade
	Schutzart (IP)	IP44/IP65/IP67
	Verriegelung	Längsbügelverriegelung

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	RO
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
