09200030327 | Harting

Name: Surface mount housing, size 3A, PC, M20, straight, longitudinal bow locking, IP44/IP65/IP67, 09200030327
Brand: Harting
SKU: 42F934
Price: 5.53 EUR
Availability: InStock

Surface mount housing, size 3A, PC, M20, straight, longitudinal bow locking, IP44/IP65/IP67, 09200030327

Order No.: 42F934

EAN: 4099889746495

MPN:

09200030327

09 20 003 0327

Series: Han A

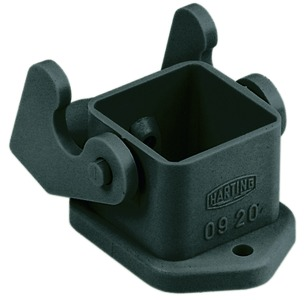

09200030327 Harting Housings for HDC Connectors Image 2

Image may differ

Key Specification:

Version Anbaugehäuse

Shell size 3A

Shell Material PC

Cable Outlet M20, gerade

Type of locking Längsbügelverriegelung

Ordering Information:

Lieferung ohne Standard- und Spezial-Kabelverschraubungen und Montagesätze für Flachleitungsausgänge, bitte separat bestellen

Show 6 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

5.5335 € *

Available: 6 pcs.

Leadtime: 14 Weeks **

Total Price:

5.53 € *

Price list

Quantity

Price per unit*

1 pcs.

5.5335 €

10 pcs.

5.0932 €

50 pcs.

4.6291 €

100 pcs.

4.1650 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Bulkhead mounted housing, 09200030327, HARTING

Bulkhead mounted housing with single locking lever, material: polycarbonate.

Technical specifications

	Version	Anbaugehäuse
	Shell size	3A
	Shell Material	PC
	Cable Outlet	M20, gerade
	Type of locking	Längsbügelverriegelung
	Degree of protection (IP)	IP44/IP65/IP67

Articles of same specification 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Country of origin	RO
Customs tariff number	85389099

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
