09200030420 | Harting

Name: Grommet housing, size 3A, PC, PG11, straight, longitudinal bow locking, IP44/IP65/IP67, 09200030420
Brand: Harting
SKU: 42F862
Price: 4.47 EUR
Availability: InStock

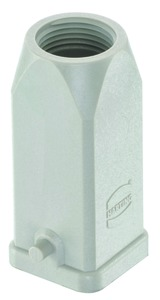

Grommet housing, size 3A, PC, PG11, straight, longitudinal bow locking, IP44/IP65/IP67, 09200030420

Order No.: 42F862

EAN: 4099889746112

MPN:

09200030420

09 20 003 0420

Series: Han A

09200030420 Harting Housings for HDC Connectors Image 2

Image may differ

Key Specification:

Ausführung Tüllengehäuse

Gehäusegröße 3A

Gehäusematerial PC

Kabelausgang PG11, gerade

Verriegelung Längsbügelverriegelung

Ordering Information:

Lieferung ohne Standard- und Spezial-Kabelverschraubungen und Montagesätze für Flachleitungsausgänge, bitte separat bestellen

Show 4 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

4.4744 € *

Available: 5 pcs.

Leadtime: 4 Weeks **

Total Price:

4.47 € *

Price list

Quantity

Price per unit*

1 pcs.

4.4744 €

10 pcs.

3.9270 €

100 pcs.

3.4629 €

250 pcs.

3.3201 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Hood, 09200030420, HARTING

Hood with single locking lever and top entry, material: polycarbonate.

Technical specifications

	Ausführung	Tüllengehäuse
	Gehäusegröße	3A
	Gehäusematerial	PC
	Kabelausgang	PG11, gerade
	Schutzart (IP)	IP44/IP65/IP67
	Verriegelung	Längsbügelverriegelung

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	RO
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
