09200030620 | Harting

Name: Grommet housing, size 3A, PC, PG11, angled, longitudinal bow locking, IP44/IP65/IP67, 09200030620
Brand: Harting
SKU: 42F870
Price: 5.74 EUR
Availability: InStock

Grommet housing, size 3A, PC, PG11, angled, longitudinal bow locking, IP44/IP65/IP67, 09200030620

Order No.: 42F870

EAN: 4099889746242

MPN:

09200030620

09 20 003 0620

Series: Han A

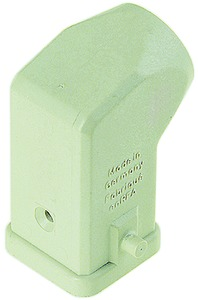

09200030620 Harting Housings for HDC Connectors Image 2

Image may differ

Key Specification:

Ausführung Tüllengehäuse

Gehäusegröße 3A

Gehäusematerial PC

Kabelausgang PG11, abgewinkelt

Verriegelung Längsbügelverriegelung

Ordering Information:

Lieferung ohne Standard- und Spezial-Kabelverschraubungen und Montagesätze für Flachleitungsausgänge, bitte separat bestellen

Download Datasheet Technical specifications

Unit Price (€ / pc.)

5.7358 € *

Available: 1 pcs.

Next delivery: 10 pcs. on 2025-05-22

Leadtime: 14 Weeks **

Total Price:

5.74 € *

Price list

Quantity

Price per unit*

1 pcs.

5.7358 €

10 pcs.

5.2717 €

50 pcs.

4.8076 €

100 pcs.

4.3197 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Hood, 09200030620, HARTING

Hood with single locking lever and side entry, material: polycarbonate.

Technical specifications

	Ausführung	Tüllengehäuse
	Gehäusegröße	3A
	Gehäusematerial	PC
	Kabelausgang	PG11, abgewinkelt
	Schutzart (IP)	IP44/IP65/IP67
	Verriegelung	Längsbügelverriegelung

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	RO
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
