09200030720 | Harting

Name: Grommet housing, size 3A, PC, PG11, straight, longitudinal bow locking, IP44/IP65/IP67, 09200030720
Brand: Harting
SKU: 42F922
Price: 6.40 EUR
Availability: InStock

Grommet housing, size 3A, PC, PG11, straight, longitudinal bow locking, IP44/IP65/IP67, 09200030720

Order No.: 42F922

EAN: 4099889746440

MPN:

09200030720

09 20 003 0720

Series: Han A

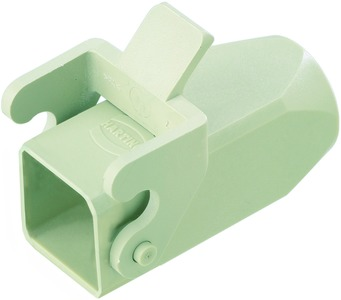

09200030720 Harting Housings for HDC Connectors Image 2

Image may differ

Key Specification:

Ausführung Tüllengehäuse

Gehäusegröße 3A

Gehäusematerial PC

Kabelausgang PG11, gerade

Verriegelung Längsbügelverriegelung

Ordering Information:

Lieferung ohne Standard- und Spezial-Kabelverschraubungen und Montagesätze für Flachleitungsausgänge, bitte separat bestellen

Show 4 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

6.4022 € *

Available: 11 pcs.

Leadtime: 14 Weeks **

Total Price:

6.40 € *

Price list

Quantity

Price per unit*

1 pcs.

6.4022 €

10 pcs.

5.9024 €

50 pcs.

5.3669 €

100 pcs.

4.8314 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Cable to cable housing, 09200030720, HARTING

Cable to cable housing with single locking lever and top entry, material: polycarbonate.

Technical specifications

	Ausführung	Tüllengehäuse
	Gehäusegröße	3A
	Gehäusematerial	PC
	Kabelausgang	PG11, gerade
	Schutzart (IP)	IP44/IP65/IP67
	Verriegelung	Längsbügelverriegelung

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	RO
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
