09200030727 | Harting

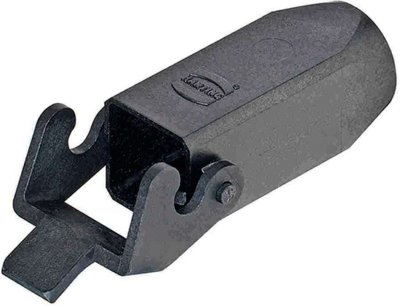

Name: Coupler housing, size 3A, PC, 1xP11, straight, longitudinal bow locking, IP44/IP65/IP67, 09200030727
Brand: Harting
SKU: 42F924
Price: 6.14 EUR
Availability: OutOfStock

Coupler housing, size 3A, PC, 1xP11, straight, longitudinal bow locking, IP44/IP65/IP67, 09200030727

Order No.: 42F924

MPN:

09200030727

09 20 003 0727

Series: Han A

Image may differ

Key Specification:

Ausführung Kupplungsgehäuse

Gehäusegröße 3A

Gehäusematerial PC

Kabelausgang 1xP11, gerade

Verriegelung Längsbügelverriegelung

Download Datasheet Technical specifications

Unit Price (€ / pc.)

6.1404 € *

Available: 0 pcs.

Leadtime: 14 Weeks **

Add to Cart

Total Price:

6.14 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Coupler housing, 09200030727, Harting

Coupler housing, Single locking lever, Size: 3 A, Top entry, Black.

Technical specifications

	Ausführung	Kupplungsgehäuse
	Gehäusegröße	3A
	Gehäusematerial	PC
	Kabelausgang	1xP11, gerade
	Schutzart (IP)	IP44/IP65/IP67
	Verriegelung	Längsbügelverriegelung

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	RO
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes

Accessory
