09200030820 | Harting

Name: Bulkhead housing, size 3A, PC, M20, angled, longitudinal bow locking, IP44/IP65/IP67, 09200030820
Brand: Harting
SKU: 42F938
Price: 11.11 EUR
Availability: InStock

Bulkhead housing, size 3A, PC, M20, angled, longitudinal bow locking, IP44/IP65/IP67, 09200030820

Order No.: 42F938

EAN: 4099889746518

MPN:

09200030820

09 20 003 0820

Series: Han A

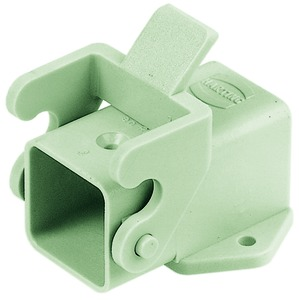

09200030820 Harting Housings for HDC Connectors Image 2

Image may differ

Key Specification:

Ausführung Anbaugehäuse

Gehäusegröße 3A

Gehäusematerial PC

Kabelausgang M20, abgewinkelt

Verriegelung Längsbügelverriegelung

Ordering Information:

Lieferung ohne Standard- und Spezial-Kabelverschraubungen und Montagesätze für Flachleitungsausgänge, bitte separat bestellen

Download Datasheet Technical specifications

Unit Price (€ / pc.)

11.1146 € *

Available: 30 pcs.

Leadtime: 12 Weeks **

Total Price:

11.11 € *

Price list

Quantity

Price per unit*

1 pcs.

11.1146 €

10 pcs.

9.7818 €

50 pcs.

9.1035 €

150 pcs.

8.7108 €

500 pcs.

8.2705 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Bulkhead mounted housing, 09200030820, HARTING

Bulkhead mounted housing with single locking lever, material: polycarbonate.

Technical specifications

	Ausführung	Anbaugehäuse
	Gehäusegröße	3A
	Gehäusematerial	PC
	Kabelausgang	M20, abgewinkelt
	Schutzart (IP)	IP44/IP65/IP67
	Verriegelung	Längsbügelverriegelung

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	RO
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
