09200031250 | Harting

Name: Bulkhead housing, size 3A, zinc die casting, PG11, straight, longitudinal bow locking, IP44/IP65/IP67, 09200031250
Brand: Harting
SKU: 42F944
Price: 10.54 EUR
Availability: InStock

Bulkhead housing, size 3A, zinc die casting, PG11, straight, longitudinal bow locking, IP44/IP65/IP67, 09200031250

Order No.: 42F944

EAN: 4099889746532

MPN:

09200031250

09 20 003 1250

Series: Han A

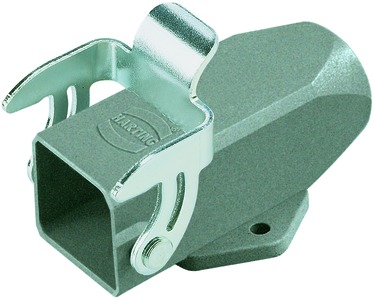

09200031250 Harting Housings for HDC Connectors Image 2

Image may differ

Key Specification:

Ausführung Anbaugehäuse

Gehäusegröße 3A

Gehäusematerial Zinkdruckguss

Kabelausgang PG11, gerade

Verriegelung Längsbügelverriegelung

Ordering Information:

Lieferung ohne Standard- und Spezial-Kabelverschraubungen und Montagesätze für Flachleitungsausgänge, bitte separat bestellen

Show 4 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

10.5434 € *

Available: 7 pcs.

Leadtime: 12 Weeks **

Total Price:

10.54 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Surface mounted housing, 09200031250, HARTING

Surface mounted housing with open bottom, single locking lever and top entry, material: zinc die-cast, powder-coated.

Technical specifications

	Ausführung	Anbaugehäuse
	Gehäusegröße	3A
	Gehäusematerial	Zinkdruckguss
	Kabelausgang	PG11, gerade
	Schutzart (IP)	IP44/IP65/IP67
	Verriegelung	Längsbügelverriegelung

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	No
Substanz Beschreibung	Blei
