09200031440 | Harting

Name: Grommet housing, size 3A, zinc die casting, PG11, straight, longitudinal bow locking, IP44/IP65/IP67, 09200031440
Brand: Harting
SKU: 42F860
Price: 7.37 EUR
Availability: InStock

Grommet housing, size 3A, zinc die casting, PG11, straight, longitudinal bow locking, IP44/IP65/IP67, 09200031440

Order No.: 42F860

EAN: 4099889746037

MPN:

09200031440

09 20 003 1440

Series: Han A

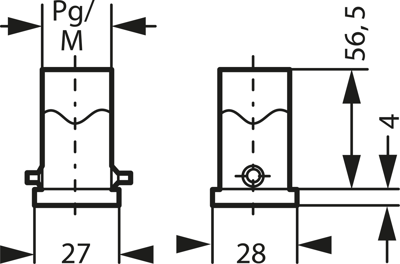

09200031440 Harting Housings for HDC Connectors Image 2

Image may differ

Key Specification:

Ausführung Tüllengehäuse

Gehäusegröße 3A

Gehäusematerial Zinkdruckguss

Kabelausgang PG11, gerade

Verriegelung Längsbügelverriegelung

Ordering Information:

Lieferung ohne Standard- und Spezial-Kabelverschraubungen und Montagesätze für Flachleitungsausgänge, bitte separat bestellen

Show 16 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

7.3661 € *

Available: 6 pcs.

Leadtime: 6 Weeks **

Total Price:

7.37 € *

Price list

Quantity

Price per unit*

1 pcs.

7.3661 €

10 pcs.

6.4736 €

100 pcs.

5.6882 €

250 pcs.

5.4502 €

1000 pcs.

5.1170 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Hood, 09200031440, HARTING

Hood with single locking lever and top entry, material: zinc die-cast, powder-coated.

Technical specifications

	Ausführung	Tüllengehäuse
	Gehäusegröße	3A
	Gehäusematerial	Zinkdruckguss
	Kabelausgang	PG11, gerade
	Schutzart (IP)	IP44/IP65/IP67
	Verriegelung	Längsbügelverriegelung

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
