09200031750 | Harting

Name: Grommet housing, size 3A, zinc die casting, PG11, straight, longitudinal bow locking, IP44/IP65/IP67, 09200031750
Brand: Harting
SKU: 42F920
Price: 10.15 EUR
Availability: InStock

Grommet housing, size 3A, zinc die casting, PG11, straight, longitudinal bow locking, IP44/IP65/IP67, 09200031750

Order No.: 42F920

EAN: 4099889746426

MPN:

09200031750

09 20 003 1750

Series: Han A

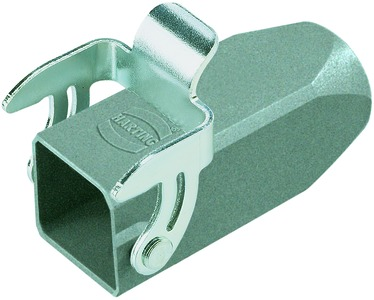

09200031750 Harting Housings for HDC Connectors Image 2

Image may differ

Key Specification:

Ausführung Tüllengehäuse

Gehäusegröße 3A

Gehäusematerial Zinkdruckguss

Kabelausgang PG11, gerade

Verriegelung Längsbügelverriegelung

Ordering Information:

Lieferung ohne Standard- und Spezial-Kabelverschraubungen und Montagesätze für Flachleitungsausgänge, bitte separat bestellen

Show 5 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

10.1507 € *

Available: 67 pcs.

Leadtime: 12 Weeks **

Total Price:

10.15 € *

Price list

Quantity

Price per unit*

1 pcs.

10.1507 €

10 pcs.

9.3296 €

50 pcs.

8.4966 €

100 pcs.

7.6398 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Cable to cable housing, 09200031750, HARTING

Cable to cable housing with single locking lever and top entry, material: zinc die-cast, powder coated.

Technical specifications

	Ausführung	Tüllengehäuse
	Gehäusegröße	3A
	Gehäusematerial	Zinkdruckguss
	Kabelausgang	PG11, gerade
	Schutzart (IP)	IP44/IP65/IP67
	Verriegelung	Längsbügelverriegelung

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
