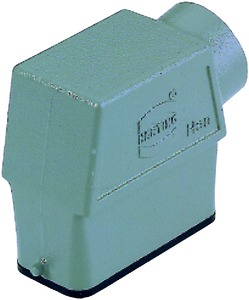

09200100540 | Harting

Name: Grommet housing, size 10A, die-cast aluminum, PG16, angled, longitudinal bow locking, IP65, 09200100540
Brand: Harting
SKU: 42F880
Price: 14.53 EUR
Availability: OutOfStock

Grommet housing, size 10A, die-cast aluminum, PG16, angled, longitudinal bow locking, IP65, 09200100540

Order No.: 42F880

EAN: 4099889746259

MPN:

09200100540

09 20 010 0540

Series: Han A

09200100540 Harting Housings for HDC Connectors Image 2

Image may differ

Key Specification:

Version Tüllengehäuse

Shell size 10A

Shell Material Aluminiumdruckguss

Cable Outlet PG16, abgewinkelt

Type of locking Längsbügelverriegelung

Ordering Information:

Lieferung ohne Standard- und Spezial-Kabelverschraubungen und Montagesätze für Flachleitungsausgänge, bitte separat bestellen

Show 11 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

14.5299 € *

Available: 0 pcs.

Leadtime: 10 Weeks **

Total Price:

14.53 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Hood, 09200100540, HARTING

Hood with single locking lever and side entry, material: aluminium die-cast, powder-coated.

Technical specifications

	Version	Tüllengehäuse
	Shell size	10A
	Shell Material	Aluminiumdruckguss
	Cable Outlet	PG16, abgewinkelt
	Type of locking	Längsbügelverriegelung
	Degree of protection (IP)	IP65

Articles of same specification 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Country of origin	DE
Customs tariff number	85389099

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No
Substance description	6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
