09200101541 | Harting

Name: Grommet housing, size 10A, die-cast aluminum, PG13.5, straight, longitudinal bow locking, IP65, 09200101541
Brand: Harting
SKU: 42F888
Price: 15.82 EUR
Availability: OutOfStock

Grommet housing, size 10A, die-cast aluminum, PG13.5, straight, longitudinal bow locking, IP65, 09200101541

Order No.: 42F888

EAN: 4099889746273

MPN:

09200101541

09 20 010 1541

Series: Han A

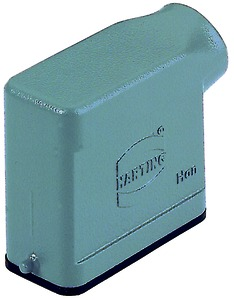

09200101541 Harting Housings for HDC Connectors Image 2

Image may differ

Key Specification:

Version Tüllengehäuse

Shell size 10A

Shell Material Aluminiumdruckguss

Cable Outlet PG13,5, gerade

Type of locking Längsbügelverriegelung

Ordering Information:

Lieferung ohne Standard- und Spezial-Kabelverschraubungen und Montagesätze für Flachleitungsausgänge, bitte separat bestellen

Show 11 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

15.8151 € *

Available: 0 pcs.

Leadtime: 3 Weeks **

Total Price:

15.82 € *

Price list

Quantity

Price per unit*

1 pcs.

15.8151 €

10 pcs.

14.7084 €

50 pcs.

13.5303 €

100 pcs.

12.3046 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Hood, 09200101541, HARTING

Hood with single locking lever and side entry, material: aluminium die-cast, powder-coated.

Technical specifications

	Version	Tüllengehäuse
	Shell size	10A
	Shell Material	Aluminiumdruckguss
	Cable Outlet	PG13,5, gerade
	Degree of protection (IP)	IP65
	Type of locking	Längsbügelverriegelung

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Country of origin	DE
Customs tariff number	85389099

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No
Substance description	6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
