09200320520 | Harting

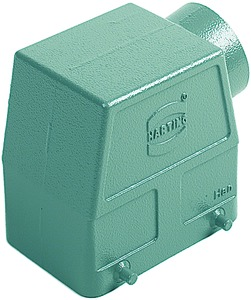

Name: Grommet housing, size 32A, die-cast aluminum, PG21, angled, cross bow locking, IP65, 09200320520
Brand: Harting
SKU: 42F9110
Price: 20.38 EUR
Availability: OutOfStock

Grommet housing, size 32A, die-cast aluminum, PG21, angled, cross bow locking, IP65, 09200320520

Order No.: 42F9110

EAN: 4099889746396

MPN:

09200320520

09 20 032 0520

Series: Han A

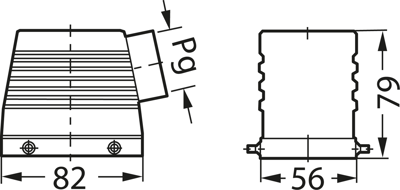

09200320520 Harting Housings for HDC Connectors Image 2

Image may differ

Key Specification:

Version Tüllengehäuse

Shell size 32A

Shell Material Aluminiumdruckguss

Cable Outlet PG21, abgewinkelt

Type of locking Querbügelverriegelung

Ordering Information:

Lieferung ohne Standard- und Spezial-Kabelverschraubungen und Montagesätze für Flachleitungsausgänge, bitte separat bestellen

Show 11 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

20.3847 € *

Available: 0 pcs.

Leadtime: 10 Weeks **

Total Price:

20.38 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Hood, 09200320520, HARTING

Hood with double locking lever and side entry, material: aluminium die-cast, powder-coated.

Technical specifications

	Version	Tüllengehäuse
	Shell size	32A
	Shell Material	Aluminiumdruckguss
	Cable Outlet	PG21, abgewinkelt
	Degree of protection (IP)	IP65
	Type of locking	Querbügelverriegelung

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Country of origin	DE
Customs tariff number	85389099

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
