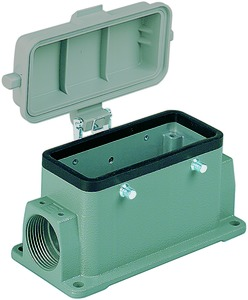

09300160260 | Harting

Name: Bulkhead housing, size 16B, die-cast aluminum, 2 x PG21, angled, cross bow locking, IP65, 09300160260
Brand: Harting
SKU: 42F596
Price: 27.80 EUR
Availability: OutOfStock

Bulkhead housing, size 16B, die-cast aluminum, 2 x PG21, angled, cross bow locking, IP65, 09300160260

Order No.: 42F596

EAN: 4099889745979

MPN:

09300160260

09 30 016 0260

Series: Han B

Image may differ

Key Specification:

Ausführung Anbaugehäuse

Gehäusegröße 16B

Gehäusematerial Aluminiumdruckguss

Kabelausgang 2 x PG21, abgewinkelt

Verriegelung Querbügelverriegelung

Show 15 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

27.7984 € *

Available: 0 pcs.

Leadtime: 8 Weeks **

Add to Cart

Total Price:

27.80 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Surface mounted housing, 09300160260, HARTING

Surface mounted housing with thermo-plastic cover, double locking lever and side entry, material: aluminium die-cast, powder-coated.

Technical specifications

	Ausführung	Anbaugehäuse
	Gehäusegröße	16B
	Gehäusematerial	Aluminiumdruckguss
	Kabelausgang	2 x PG21, abgewinkelt
	Schutzart (IP)	IP65
	Verriegelung	Querbügelverriegelung

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	No
Substanz Beschreibung	6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
