Name: Surface mount housing, size 16B, die-cast aluminum, cross bow locking, IP65, 09300160301
Brand: Harting
SKU: 42F560
Price: 24.75 EUR
Availability: InStock

Surface mount housing, size 16B, die-cast aluminum, cross bow locking, IP65, 09300160301

Order No.: 42F560

EAN: 4099889745900

MPN:

09300160301

09 30 016 0301

Series: Han B

09300160301 Harting Housings for HDC Connectors Image 2

Image may differ

Key Specification:

Version Anbaugehäuse

Shell size 16B

Shell Material Aluminiumdruckguss

Type of locking Querbügelverriegelung

Show 8 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

24.7520 € *

Available: 5 pcs.

Leadtime: 6 Weeks **

Total Price:

24.75 € *

Price list

Quantity

Price per unit*

1 pcs.

24.7520 €

10 pcs.

21.7889 €

50 pcs.

20.3014 €

150 pcs.

19.4089 €

500 pcs.

18.4212 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

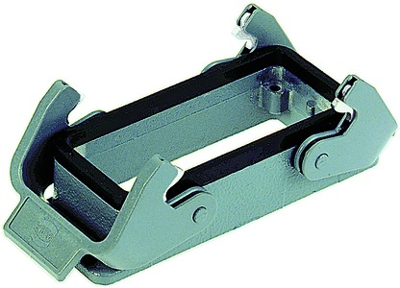

Bulkhead mounted housing, 09300160301, HARTING

Bulkhead mounted housing with double locking lever, material: aluminium die-cast, powder-coated.

Technical specifications

	Version	Anbaugehäuse
	Shell size	16B
	Shell Material	Aluminiumdruckguss
	Degree of protection (IP)	IP65
	Type of locking	Querbügelverriegelung
