09300160302 | Harting

Name: Surface mount housing, size 16B, die-cast aluminum, cross bow locking, IP65, 09300160302
Brand: Harting
SKU: 42F590
Price: 31.08 EUR
Availability: InStock

Surface mount housing, size 16B, die-cast aluminum, cross bow locking, IP65, 09300160302

Order No.: 42F590

EAN: 4099889745962

MPN:

09300160302

09 30 016 0302

Series: Han B

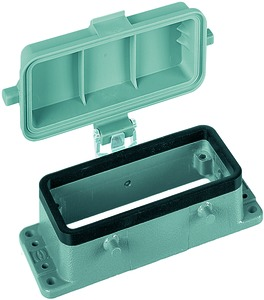

09300160302 Harting Housings for HDC Connectors Image 2

Image may differ

Key Specification:

Version Anbaugehäuse

Shell size 16B

Shell Material Aluminiumdruckguss

Type of locking Querbügelverriegelung

Show 7 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

31.0828 € *

Available: 47 pcs.

Leadtime: 9 Weeks **

Total Price:

31.08 € *

Price list

Quantity

Price per unit*

1 pcs.

31.0828 €

5 pcs.

29.2145 €

15 pcs.

28.0959 €

50 pcs.

26.8583 €

150 pcs.

25.7278 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Bulkhead mounted housing, 09300160302, HARTING

Bulkhead mounted housing with thermo-plastic cover and double locking lever, material: aluminium die-cast, powder-coated.

Technical specifications

	Version	Anbaugehäuse
	Shell size	16B
	Shell Material	Aluminiumdruckguss
	Degree of protection (IP)	IP65
	Type of locking	Querbügelverriegelung

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Country of origin	DE
Customs tariff number	85389099

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No
Substance description	6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
