09300160306 | Harting

Surface mount housing, size 16B, die-cast aluminum, longitudinal bow locking, IP65, 09300160306

Order No.: 42F572
EAN: 4099889745948
MPN:
09300160306
09 30 016 0306
Series: Han B

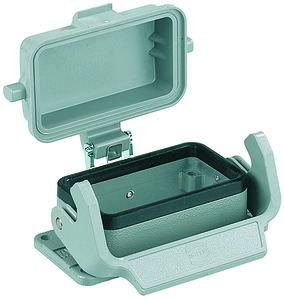

09300160306 Harting Housings for HDC Connectors Image 1

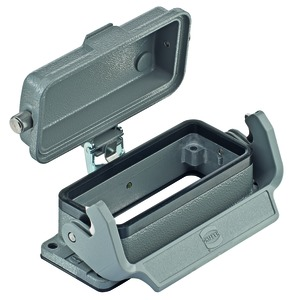

09300160306 Harting Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
22.5981 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
22.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
22.5981 €

Bulkhead mounted housing, 09300160306, HARTING

Bulkhead mounted housing with thermo-plastic cover, single locking lever,material: aluminium die-cast, powder-coated.

Technical specifications
Version Anbaugehäuse
Shell size 16B
Shell Material Aluminiumdruckguss
Degree of protection (IP) IP65
Type of locking Längsbügelverriegelung
Logistics
Country of origin DE
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
