09300161420 | Harting

Name: Grommet housing, size 16B, die-cast aluminum, PG21, straight, cross bow locking, IP65/IP66/IP67, 09300161420
Brand: Harting
SKU: 42F290
Price: 12.53 EUR
Availability: OutOfStock

Grommet housing, size 16B, die-cast aluminum, PG21, straight, cross bow locking, IP65/IP66/IP67, 09300161420

Order No.: 42F290

EAN: 4099889745634

MPN:

09300161420

09 30 016 1420

Series: Han B

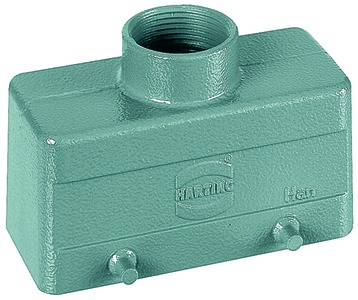

09300161420 Harting Housings for HDC Connectors Image 2

Image may differ

Key Specification:

Ausführung Tüllengehäuse

Gehäusegröße 16B

Gehäusematerial Aluminiumdruckguss

Kabelausgang PG21, gerade

Verriegelung Querbügelverriegelung

Show 11 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

12.5307 € *

Available: 0 pcs.

Leadtime: 9 Weeks **

Add to Cart

Total Price:

12.53 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Hood, 09300161420, HARTING

Hood with double locking lever and top entry, material: aluminium die-cast, powder-coated.

Technical specifications

	Ausführung	Tüllengehäuse
	Gehäusegröße	16B
	Gehäusematerial	Aluminiumdruckguss
	Kabelausgang	PG21, gerade
	Schutzart (IP)	IP65/IP66/IP67
	Verriegelung	Querbügelverriegelung

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
