09300161540 | Harting

Name: Grommet housing, size 16B, die-cast aluminum, PG21, angled, longitudinal bow locking, IP65/IP66/IP67, 09300161540
Brand: Harting
SKU: 42F308
Price: 11.47 EUR
Availability: OutOfStock

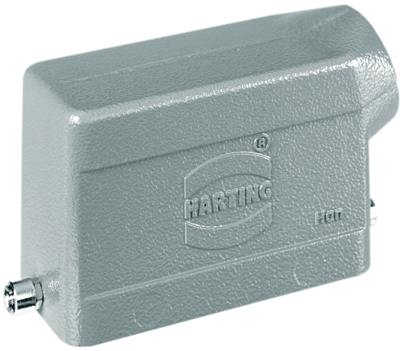

Grommet housing, size 16B, die-cast aluminum, PG21, angled, longitudinal bow locking, IP65/IP66/IP67, 09300161540

Order No.: 42F308

EAN: 4099889745689

MPN:

09300161540

09 30 016 1540

Series: Han B

Image may differ

Key Specification:

Version grommet housing

Shell size 16B

Shell Material die-cast aluminum

Cable Outlet PG21, angled

Type of locking longitudinal bow locking

Show 3 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

11.4716 € *

Available: 0 pcs.

Leadtime: 16 Weeks **

Add to Cart

Total Price:

11.47 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Hood, 09300161540, HARTING

Hood with single locking lever and side entry, material: aluminium die-cast, powder-coated.

Technical specifications

	Version	grommet housing
	Shell size	16B
	Shell Material	die-cast aluminum
	Cable Outlet	PG21, angled
	Degree of protection (IP)	IP65/IP66/IP67
	Type of locking	longitudinal bow locking

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

DID – Dimension drawing - EN DID – Dimension drawing

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	DE
Customs tariff number	85389099

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

Accessory
