09370161230 | Harting

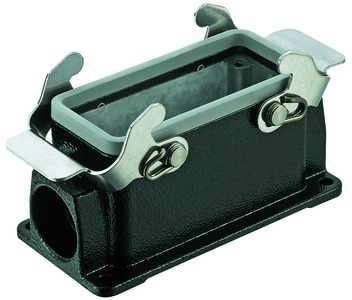

Name: Surface mount housing, size 16B, die-cast aluminum, PG21, angled, cross bow locking, IP65, 09370161230
Brand: Harting
SKU: 44F3526
Price: 91.64 EUR
Availability: OutOfStock

Surface mount housing, size 16B, die-cast aluminum, PG21, angled, cross bow locking, IP65, 09370161230

Order No.: 44F3526

EAN: 4099889752335

MPN:

09370161230

09 37 016 1230

Series: Han B

Image may differ

Key Specification:

Version Anbaugehäuse

Shell size 16B

Shell Material Aluminiumdruckguss

Cable Outlet PG21, abgewinkelt

Type of locking Querbügelverriegelung

Show 10 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

91.6419 € *

Available: 0 pcs.

Leadtime: 11 Weeks **

Total Price:

91.64 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Surface mounted housing, 09370161230, HARTING

Surface mounted housing with double locking lever and side entry, material: aluminium die-cast, powder-coated.

Technical specifications

	Version	Anbaugehäuse
	Shell size	16B
	Shell Material	Aluminiumdruckguss
	Cable Outlet	PG21, abgewinkelt
	Degree of protection (IP)	IP65
	Type of locking	Querbügelverriegelung

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Country of origin	DE
Customs tariff number	85389099

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
