19200030420 | Harting

Name: Grommet housing, size 3A, PC, M20, straight, longitudinal bow locking, IP44/IP65/IP67, 19200030420
Brand: Harting
SKU: 42F863
Price: 5.30 EUR
Availability: InStock

Grommet housing, size 3A, PC, M20, straight, longitudinal bow locking, IP44/IP65/IP67, 19200030420

Order No.: 42F863

EAN: 4099889746181

MPN:

19200030420

19 20 003 0420

Series: Han A

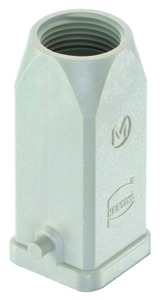

19200030420 Harting Housings for HDC Connectors Image 2

Image may differ

Key Specification:

Ausführung Tüllengehäuse

Gehäusegröße 3A

Gehäusematerial PC

Kabelausgang M20, gerade

Verriegelung Längsbügelverriegelung

Ordering Information:

Lieferung ohne Standard- und Spezial-Kabelverschraubungen und Montagesätze für Flachleitungsausgänge, bitte separat bestellen

Show 8 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

5.2955 € *

Available: 7 pcs.

Leadtime: 4 Weeks **

Total Price:

5.30 € *

Price list

Quantity

Price per unit*

1 pcs.

5.2955 €

10 pcs.

4.6767 €

100 pcs.

4.0936 €

250 pcs.

3.9270 €

1000 pcs.

3.6771 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Hood, 19200030420, HARTING

Hood with single locking lever and top entry, material: polycarbonate.

Technical specifications

	Ausführung	Tüllengehäuse
	Gehäusegröße	3A
	Gehäusematerial	PC
	Kabelausgang	M20, gerade
	Schutzart (IP)	IP44/IP65/IP67
	Verriegelung	Längsbügelverriegelung

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	RO
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
