19200031750 | Harting

Name: Grommet housing, size 3A, zinc die casting, M20, straight, longitudinal bow locking, IP44/IP65/IP67, 19200031750
Brand: Harting
SKU: 42F921
Price: 11.34 EUR
Availability: OutOfStock

Grommet housing, size 3A, zinc die casting, M20, straight, longitudinal bow locking, IP44/IP65/IP67, 19200031750

Order No.: 42F921

EAN: 4099889746433

MPN:

19200031750

19 20 003 1750

Series: Han A

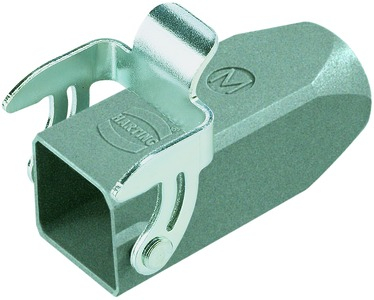

19200031750 Harting Housings for HDC Connectors Image 2

Image may differ

Key Specification:

Ausführung Tüllengehäuse

Gehäusegröße 3A

Gehäusematerial Zinkdruckguss

Kabelausgang M20, gerade

Verriegelung Längsbügelverriegelung

Ordering Information:

Lieferung ohne Standard- und Spezial-Kabelverschraubungen und Montagesätze für Flachleitungsausgänge, bitte separat bestellen

Show 5 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

11.3407 € *

Available: 0 pcs.

Next delivery: 9 pcs. on 2025-04-17

Leadtime: 10 Weeks **

Add to Cart

Total Price:

11.34 € *

Price list

Quantity

Price per unit*

1 pcs.

11.3407 €

10 pcs.

9.9960 €

50 pcs.

9.2939 €

150 pcs.

8.9012 €

500 pcs.

8.4490 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Cable to cable housing, 19200031750, HARTING

Cable to cable housing with single locking lever and top entry, material: zinc die-cast, powder-coated.

Technical specifications

	Ausführung	Tüllengehäuse
	Gehäusegröße	3A
	Gehäusematerial	Zinkdruckguss
	Kabelausgang	M20, gerade
	Schutzart (IP)	IP44/IP65/IP67
	Verriegelung	Längsbügelverriegelung

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
