19300161521 | Harting

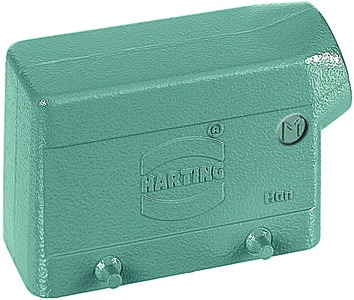

Name: Grommet housing, size 16B, die-cast aluminum, M25, angled, cross bow locking, IP65/IP66/IP67, 19300161521
Brand: Harting
SKU: 42F289
Price: 11.92 EUR
Availability: OutOfStock

Grommet housing, size 16B, die-cast aluminum, M25, angled, cross bow locking, IP65/IP66/IP67, 19300161521

Order No.: 42F289

EAN: 4099889745627

MPN:

19300161521

19 30 016 1521

Series: Han B

Image may differ

Key Specification:

Ausführung Tüllengehäuse

Gehäusegröße 16B

Gehäusematerial Aluminiumdruckguss

Kabelausgang M25, abgewinkelt

Verriegelung Querbügelverriegelung

Show 9 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

11.9238 € *

Available: 0 pcs.

Leadtime: 9 Weeks **

Add to Cart

Total Price:

11.92 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Hood, 19300161521, HARTING

Hood with double locking lever and side entry, material: aluminium die-cast, powder-coated.

Technical specifications

	Ausführung	Tüllengehäuse
	Gehäusegröße	16B
	Gehäusematerial	Aluminiumdruckguss
	Kabelausgang	M25, abgewinkelt
	Schutzart (IP)	IP65/IP66/IP67
	Verriegelung	Querbügelverriegelung
