19300240527 | Harting

Name: Grommet housing, size 24B, die-cast aluminum, M32, angled, cross bow locking, IP65/IP66/IP67, 19300240527
Brand: Harting
SKU: 42F341
Price: 20.28 EUR
Availability: OutOfStock

Grommet housing, size 24B, die-cast aluminum, M32, angled, cross bow locking, IP65/IP66/IP67, 19300240527

Order No.: 42F341

EAN: 4099889745719

MPN:

19300240527

19 30 024 0527

Series: Han B

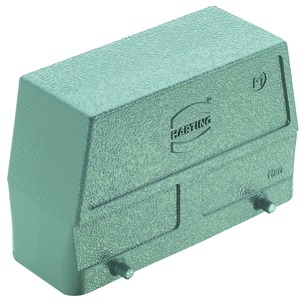

19300240527 Harting Housings for HDC Connectors Image 2

Image may differ

Key Specification:

Ausführung Tüllengehäuse

Gehäusegröße 24B

Gehäusematerial Aluminiumdruckguss

Kabelausgang M32, abgewinkelt

Verriegelung Querbügelverriegelung

Show 6 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

20.2776 € *

Available: 0 pcs.

Leadtime: 9 Weeks **

Add to Cart

Total Price:

20.28 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Hood, 19300240527, HARTING

Hood with double locking lever and side entry, material: aluminium die-cast, powder-coated.

Technical specifications

	Ausführung	Tüllengehäuse
	Gehäusegröße	24B
	Gehäusematerial	Aluminiumdruckguss
	Kabelausgang	M32, abgewinkelt
	Schutzart (IP)	IP65/IP66/IP67
	Verriegelung	Querbügelverriegelung

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
