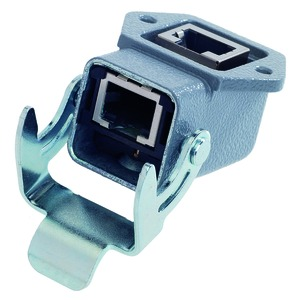

09452151108 | Harting
Modular adapter, RJ45 socket to RJ45 socket, straight, Cat 5, 09452151108
Unit Price (€ / pc.)
30.6901 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Panel feed-through, angled, size: Han 3 A, contacts: 8
Panel feed-through, angled, size: Han 3 A, contacts: 8.
The technical features of 09452151108 from Harting at glance
- Product type description Han3A RJ45 Cat5 WDF 8p, angled
- Contact design Panel feed-through
- Angle contact / conductor connection 180° (horizontal)
- Housing material Zinc die casting
- Protection class (IP, mounted) IP67 - IP65
- Number of plug contacts 8
- Description Han3A RJ45 Cat5 WDF 8p, angled
- max. Ambient temperature 70 °C
- max. Operating temperature 70 °C
- min. Ambient temperature - 40 °C
- min. Operating temperature - 40 °C
Technical specifications
| Design | straight | |
| Category | Cat 5 | |
| Connector (exit) | RJ45 socket | |
| Connector | RJ45 socket |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
