21033212830 | Harting
Socket, 8 pole, solder cup, screw locking, straight, 21033212830
Order No.: 45F930
EAN: 4099889725223
MPN:
21033212830
21 03 321 2830
Series: Circular connectors M12
Unit Price (€ / pc.)
43.6016 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
43.60 € *
Price list
Quantity
Price per unit*
1 pcs.
43.6016 €
10 pcs.
38.3656 €
50 pcs.
35.7476 €
100 pcs.
34.7004 €
250 pcs.
33.3914 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector, 21033212830, Harting

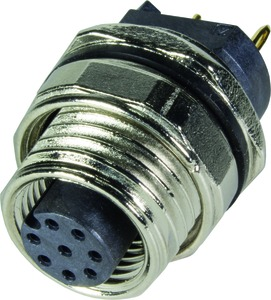

The 21033212830 is a straight female PCB adapter for rear mounting.
Features
- Copper alloy
- Reflow soldering termination (THR)
- Screw locking
- Liquid crystal polymer (LCP)
- Rated current: 2 A
Technical specifications
| Version | Buchse | |
| Shell Material | Zinkdruckguss | |
| Contact connection | Lötkelch | |
| contact surface | vergoldet | |
| Assembly | Leiterplattenmontage | |
| Orientation | gerade | |
| Pin number | 8-polig | |
| Type of locking | Schraubverriegelung |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
