09180107005 | Harting

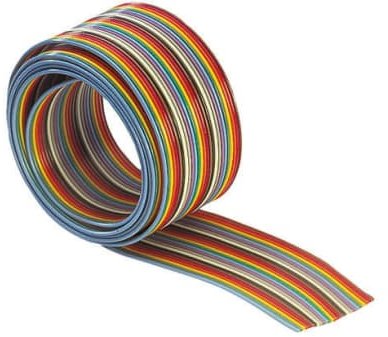

Flat ribbon cable, 10 pole, pitch 1.27 mm, 0.09 mm², AWG 28, different, 09180107005
Order No.: 44F1026
EAN: 4099891233679
MPN:
09180107005
09 18 010 7005
Unit Price (€ / pc.)
41.2930 € *
Available: 0 pcs.
Leadtime: 34 Weeks **
Total Price:
41.29 € *
Price list
Quantity
Price per unit*
1 pcs.
41.2930 €
5 pcs.
38.8178 €
10 pcs.
37.8182 €
20 pcs.
36.8424 €
*incl. VAT plus shipping costs
**Subject to prior sale
Copper cable, 09180107005, Harting
Copper cable (flat), Core structure: AWG 28/7, Material: PVC, Cable length: 30.48 m.
Technical specifications
| Number of cores | 10 | |
| Version | flat ribbon cable | |
| Outer diameter | 1 mm | |
| AWG cross-section | AWG 28 | |
| Width | 12.43 mm | |
| Colour | different | |
| Cable length | 30.48 m | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 0.09 mm² | |
| Rated voltage | 300 V | |
| Grid | 1.27 mm | |
| Shielding | unshielded | |
| Temperature range (active) | -20 °C to 105 °C | |
| Temperature range (unmoved) | -30 °C to 105 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85444991 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
